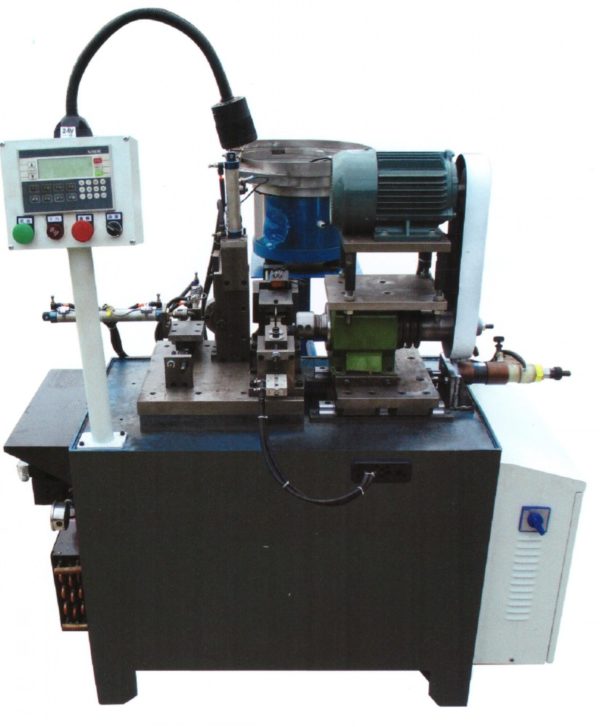

Single side automatic special fasteners chamfering machine lathe specifications:
Processing form: Single side automatic special fasteners chamfering
specialty fasteners length: 30-70mm
specialty fasteners diameter: 4-25mm (can be increased)
specialty fasteners shape: round, square, hexagonal,special shape
Processing speed: 18-25 pcs per min.
Length tolerance: ±0.05mm
Control System: PLC+Hydraulic System
Motor power: 1.5KW
Spindle speed: 2000 rpm (optional stepless speed regulation)
Power supply voltage: 380V 50HZ (three-phase four-wire) or customized
Machine weight: about 400kg
Feeding type: front load and unload
Main use and application scope of Single side automatic special fasteners chamfering machine lathe
Scope of application: suitable for mass chamfering production of various stepped shaft parts and specialty fasteners.
Automated machining process of outer circle , flat end face, slotting, chamfering, hole punching, etc.
For example: high-strength hex bolts, shafts parts, pins, rivets, hardware.
Specialty fasteners sample machined by Single side automatic special fasteners chamfering machine lathe
