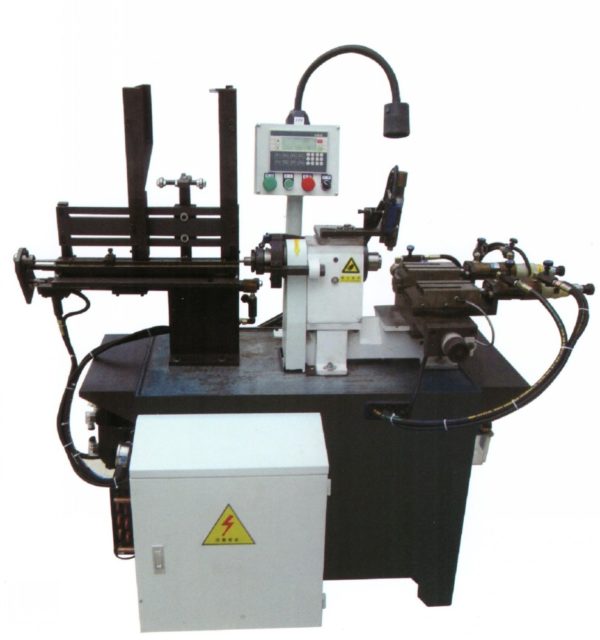

Shaft type parts groove slot step turning lathe specifications:
Processing form: processing shafts,axles parts.
shafts,axles parts: 70-630mm
shafts,axles parts diameter: 3-45mm
shafts,axles parts shape: round, square, hexagonal
Processing speed: 10-18 pcs per min.
Length tolerance: ±0.05mm
Control System: PLC+Hydraulic System
Motor power: 1.5/2.2KW
Spindle speed: 2200 rpm (optional stepless speed regulation)
Power supply voltage: 380V 50HZ (three-phase four-wire) or customized
Machine weight: about 600kg
Feeding type: rear feeding
Main use and application scope of Shaft type parts groove slot step turning lathe
Scope of application: suitable for mass production of various stepped shaft parts and specialty fasteners.
Automated machining process of outer circle , flat end face, slotting, chamfering, hole punching, etc.
For example: high-strength hex bolts, shafts parts, pins, rivets, hardware.
