Description
Automatic square hex shape head machining lathe specifications:
Maximum turning diameter on the bed:Ф240mm
X-axis table surface turning diameter:Ф120mm
Maximum processing bar diameter:Ф40mm
Maximum processing length:Unlimited
Processing square faces:2,4, 6, 8.,12
Maximum speed:2000r/min
Spindle control mode:Frequency conversion stepless speed regulation
Built-in spindle motor:1.5/2.2/3 KW
x, Z axis fast moving speed:24m/min
X-axis travel:50mm
Z-axis travel:200mm
X-axis torque:4 N.m
Z-axis torque:4 N.m
Tool holder size:12x12mm 16x16mm
Spindle runout:<=0.002mm
Repeatability precision:<=0.002mm
Machine weight:1400kg
Machine dimensions (length x width x height):1220x910x1550mm
Main use and application scope of Automatic square hex shape head machining lathe
Scope of application: It is suitable for mass production of square faces machining.
Material sample machined by Automatic square hex shape head machining lathe

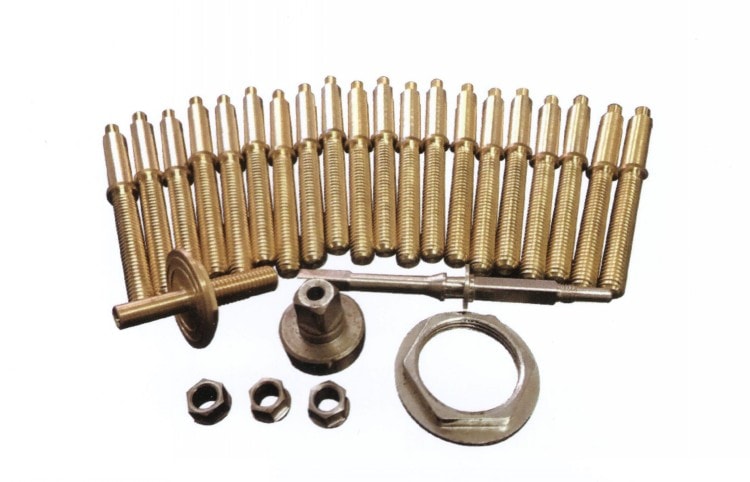

Parts turned by Automatic square hex shape head machining lathe
