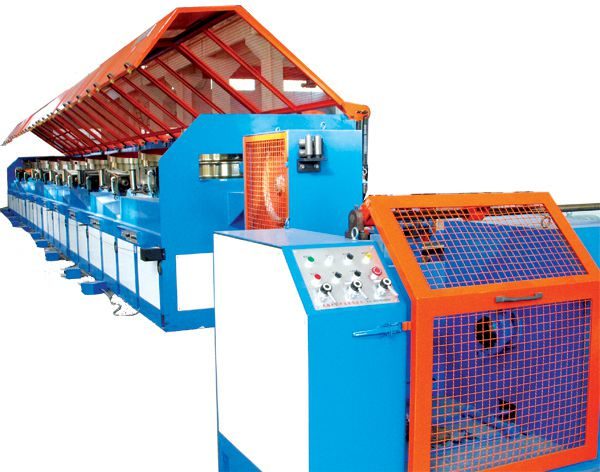

Straight Line Wire Drawing Machine LZ9/1200+Spool Take-up Machine GS 1250

Straight Line Wire Drawing Machine LZ9/1200+Spool Take-up Machine GS 1250

Description

Description

Salient Features of Straight Line Wire Drawing Machine LZ9/1200+Spool Take-up Machine GS 1250

Our straight line wire drawing machine applies advanced international technology,with digestion and absorption,the drawing machine is applicable for high intensity and performance demand.It mainly applied for the production of P.C wire,steel curtain wire,bead wire,steel wire for rope,spring steel wire,stainless steel wire,gas welding wire,arc welding wire,etc.The capstan diameter of the series products is φ350-φ1200mm with maximum inlet diameter of φ14mm and minimum outlet diameter of 0.7mm.

The equipment contains the function of human-machine dialogue,over-temperature protection for motor,alarm for abnormal water pressure,fault display,etc.Its transmission structure is hardened gear reducer+narrow V belt or planar double worm gear reducer+narrow V belt with low noise.The capstan applies the combination of narrow water cooling and air cooling with good cooling effect.AC variable-frequency and Siemens PLC is used for speed adjustment.Generally,it is a kind of efficient and advanced drawing machine equipment with easy operation,high degree of automation and broad process scope.

Main Technical Parameters of Straight Line Wire Drawing Machine LZ9/1200+Spool Take-up Machine GS 1250

Item Unit LZ9/1200-1000 LZ9/1000-800 LZ10/800 LZ10/600(560) LZ10/450(400)
Diameter of capstan mm 1200-1000 1100-800 800(700) 600(560) 450(400)
Drawing times time 9 9 10 10 10
Maximum diameter of inlet wire mm φ14-φ10 φ10-φ8 φ9-φ6.5 φ6.5-φ5.5 φ4.5-φ2.5
Minmum diameter of oulet wire mm φ5-φ3.5 φ3.5-φ2.8 φ2.8-φ2.0 φ2.0-φ1.7 φ1.4-φ0.8
Drawing line speed m/min 300 360 480 720 840
Inlet tensile strength Mpa ≤1300 ≤1300 ≤1300 ≤1300 ≤1300
Total compression rate % 87.24 87.75 90.53 90.53 90.32
Average compression rate % 20.45 20.8 21 21 20.83
Motor power Kw 110-75 90-45 75-37 37-22 15-7.5
