Stainless Steel Express Nail Anchors for concrete

Description

Description

Stainless Steel Express Nail Anchors for concrete

The Express Nail Anchor is ideal for economical, quick, repetitive fixing applications. Ideal for use on frames, battens, fencing etc. Simply drill hole and hammer fixing hole.

Material: Stainless steel 201 202 304 316

Approval and Testing Report

  • CE Approval
  • The Thickness of Zinc Testing
  • Material Inspection certification
  • Flexibility Testing and Pressing Testing
  • HRC

Technical Data

Size D

[mm]

D2

[mm]

L

[mm]

B

[mm]

Packaging

[Pieces]

Weight

[Kg/mpc]

6 × 30 6.7 6 30 0.8 200 3
6 × 40 6.7 6 40 0.8 200 4
6 × 50 6.7 6 50 0.8 200 5
6 × 60 6.7 6 60 0.8 200 6
6 × 80 6.7 6 80 0.8 200 8
6 × 100 6.7 6 100 0.8 200 10
8 × 70 8.7 8 70 1 100 12
8 × 90 8.7 8 90 1 100 15
8 × 110 8.7 8 110 1 100 18
8 × 130 8.7 8 130 1 100 21
8 × 150 8.7 8 150 1 100 24
8 × 180 8.7 8 180 1 100

27

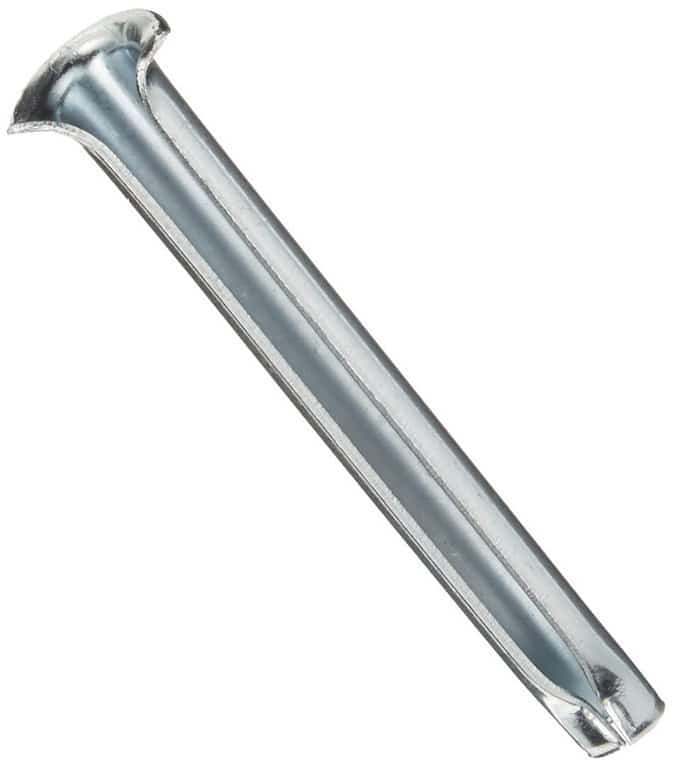

Stainless Steel Express Nails Anchors for concrete

Stainless Steel Express Nails Anchors for concrete

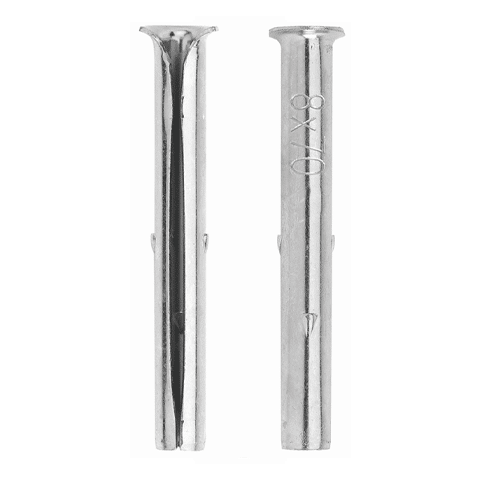

Stainless Steel Express Nail Anchors for concrete

Stainless Steel Express Nail Anchors for concrete

Packing andh shipment

anchor fasteners packing and shipment

Stainless Steel Express Nails Anchors for concrete packing and shipment

Install method

Zinc Alloy Hammer Drive Anchor With Steel Nail install method

Stainless Steel Express Nails Anchors for concrete install method
