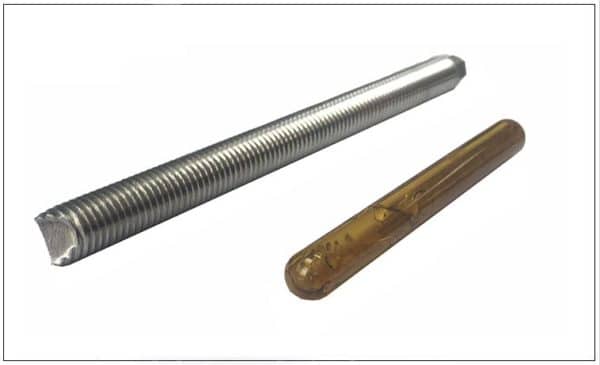

Stainless Steel Chemical Anchor Studs

Description

Description

Stainless Steel Chemical Anchor Studs

Chemical anchor can be used for the anchoring of concrete and external wall structural parts. The anchoring method is adhesive type. Corresponding hoses are provided.

Product Name Stainless Steel Chemical Anchor
Material SS201/SS304/SS304L/SS316Letc.
Size M8 – M30
Surface Bright
Packaging Details Cartons + Plywood cases

Also can be packed as clients’ requirements.

Delivery Within 15 days
OEM/ODM Available
Sample Available, 3-5 days after receiving payment

Technical parameters(mm):

Product model

Drilling diameter

Drilling depth

Anchorage thickness(max)

Substrate thickness(min)

Screw length

M8×110

10

80

15

140

110

M10×130

12

90

20

160

130

M12×160

14

110

25

210

160

M16×190

18

125

35

210

190

M20×260

25

170

65

340

260

M24×300

28

210

65

370

300

M30×380

35

270

70

540

380

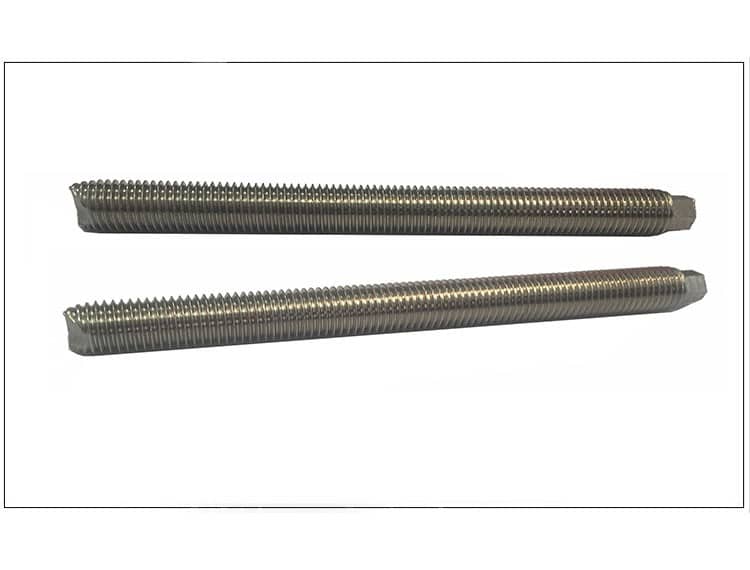

Stainless Steel Chemical Anchors

Stainless Steel Chemical Anchors

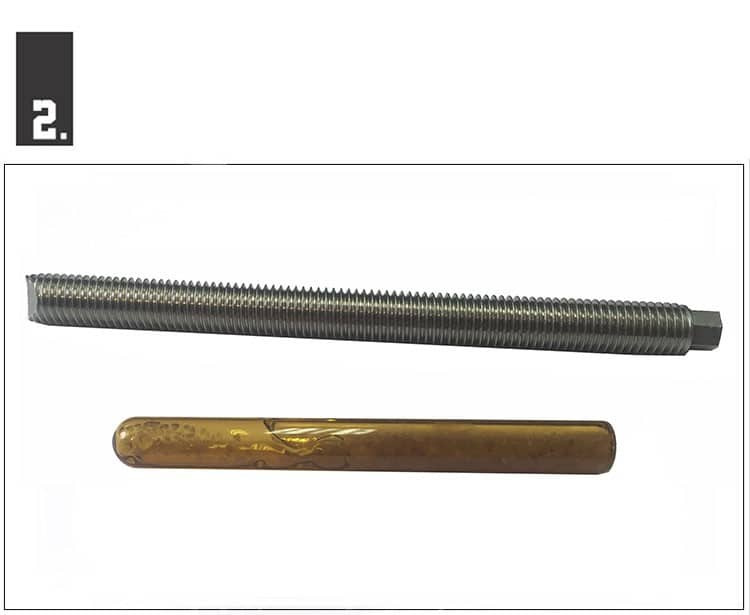

Stainless Steel Chemical Stud Anchors

Stainless Steel Chemical Stud Anchors

Chemical reaction time:

Substrate temperature

Hardening time

-5℃—0℃

5h

0℃—10℃

1h

10℃—20℃

30min

>20℃

20min

Operating:

1. Use straight hole drills to drill holes of corresponding diameter and depth;

2. Use the soot blower to sweep ash more than 2 times;

3. Use a brush to clean hole dust more than 2 times;

4. Use the soot blower again to sweep ash until the hole has no dust overflow;

5. Put in the medicament tube;

6. Use a torque drill to screw in a high-strength chemical anchor to complete the anchoring.

P.s. Electric hammer, drills, soot blowers, brush, torque drills and mounting connector will be used during the operation. Jiraw is equipped with a brush and mounting connector as standard. Soot blowers are presented in proportion to the quantity. Others are purchased on demand.

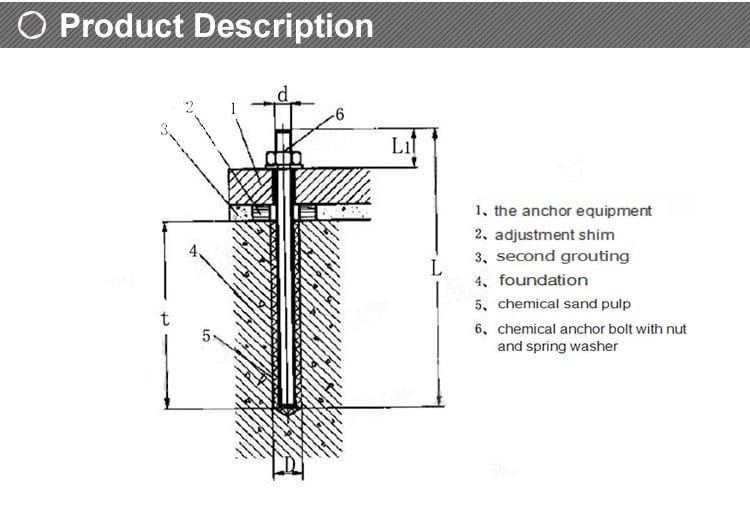

Stainless Steel Chemical Anchor Studs structure and components

Stainless Steel Chemical Anchor Studs structure and components

Packing and shipment

anchor fasteners packing and shipment

Stainless Steel Chemical Anchor Studs packing and shipment

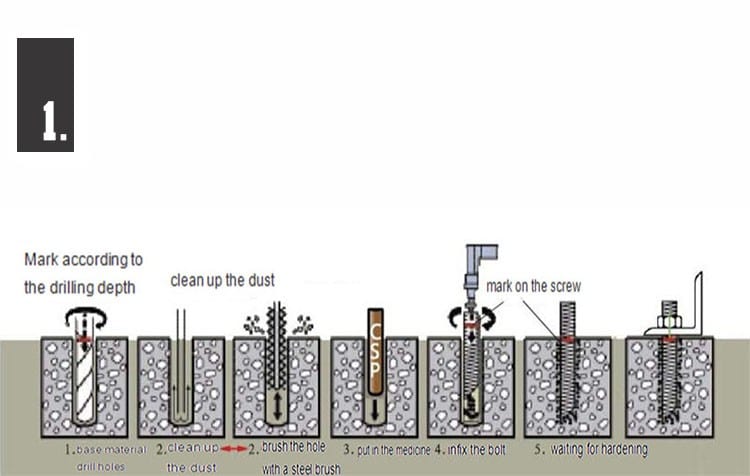

Install method:

Stainless Steel Chemical Anchor Studs install method

Stainless Steel Chemical Anchor Studs install method
