Description
M10 Flat Head Nut Sleeve Anchor screw making machine

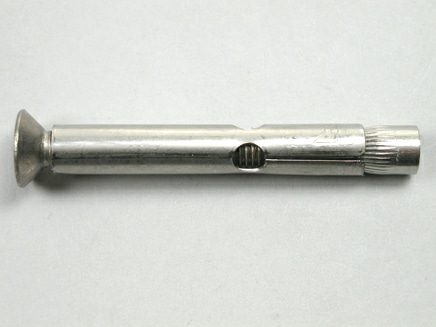

M10 Flat Head Nut Sleeve Anchor made by screw making machine
Salient Features:
- One die two blows design,simple structure.
- Running steady and easy to operate & adjustment.
- Extra length upto 400MM machine available,satisfy customer’s requirement for very long bolt.
Specifications of M10 Sleeve anchor bolt/Hollow wall anchor screw/Toggle bolt making machine
| Model | Shank Dia.(MM) | Shank Length (MM) | Output (PPM) | Ram Stroke (MM) | Main Motor(KW) | Weight (KG) | Dimensions (M) |
|---|---|---|---|---|---|---|---|
| ANH12-10 | 8-10 | 20-150 | 60 | 200 | 11 | 6500 | 3.52×1.9×1.7 |
| ANH12-10L | 8-10 | 30-200 | 55 | 260 | 11 | 8500 | 4×2×1.8 |
| ANH12-10LL | 8-10 | 45-250 | 45 | 330 | 11 | 10000 | 4.5×2.1×1.88 |
