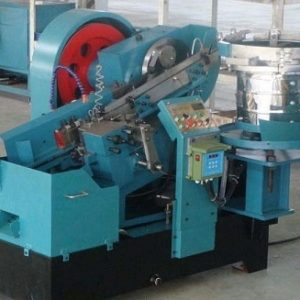

M10-3/8″ Metric elevator bolts flat die thread rolling machine

Salient Features:

  1. Full automatic design with high efficiency.
  2. Easy to operate and adjustment.
  3. Advanced PLC control system optional.
Description

Description

M10-3/8″ Metric elevator bolts flat die thread rolling machine

Main functions of wedge anchor bolt flat die thread rolling machine:

Main functions of wedge anchor bolt flat die thread rolling machine is to make wedge anchor bolt products happen plastic deformation by press rolling of one dynamic thread rolling plate die and one statics thread rolling plate die , and the form the different thread types by thread rolling plate die different design, it can accurately grinding various standard thread tooth of national standard,ISO,DIN, JIS, ANSI, BS,GB,etc., the machine has the advantages of fully automatic, high production speed and good-stability performance, the output per minute capacity can be up to more than 300pcs, it is most advanced thread rolling machine with higher speed in the current market, which is also suitable for mass thread rolling production for other types screws and bolts.Auto checker system and inverter is optional by customers.

Specificatons of M10 Wedge Anchor Bolt Thread Rolling/Drop In Anchor Bush Knurling Machine

ParametersUnitModel:Z25-10
Max.DiameterMM10
Die Case HeightMM55
Max.OutputPPM70
Main Motor)KW5.5
Appro.WeightTON1.2
Appro.DimensionM2*1.05*1.5
