Description
Specification sheet of Hollow wall anchor screw forging machine(Taiwan high speed type)
| Model | Max.dia. (mm) | Max.length (mm) | Main die(mm) | 1 st /2 nd punch size(mm) | Shear die(mm) | PCS/min | Main motor (KW) |
|---|---|---|---|---|---|---|---|
| AH-4 | 4 | 30 | ∮34.5*50 | ∮25*45；∮ 25*35 | 15 | 160-190 | 1.5 |
| AH-4A | 4 | 30 | ∮34.5*50 | ∮25*45；∮ 25*35 | 15 | 190-220 | 1.5 |
| AH-5 | 5 | 50 | ∮34.5*80 | ∮31*55 | 19 | 145-175 | 2.2 |
| AH-5A | 5 | 50 | ∮34.5*80 | ∮31*55；∮ 25*35 | 19 | 170-220 | 2.2 |
| AH-5L | 5 | 63 | ∮34.5*80 | ∮31*55 | 19 | 130-160 | 2.2 |
| AH-5LL | 5 | 76 | ∮34.5*108 | ∮31*55 | 19 | 90-120 | 3 |
| AH-6 | 6 | 50 | ∮45*108 | ∮36*90 | 25 | 130-150 | 4 |
| AH-6L | 6 | 85 | ∮45*108 | ∮36*90 | 25 | 80 | 4 |
| AH-6LL | 6 | 120 | ∮45*135 | ∮36*106 | 25 | 70 | 5.5 |
| AH-8 | 8 | 60 | ∮60*118 | ∮38*107 | 28 | 60-120 | 7.5 |
| AH-8L | 8 | 100 | ∮60*118 | ∮38*107 | 28 | 60-85 | 7.5 |

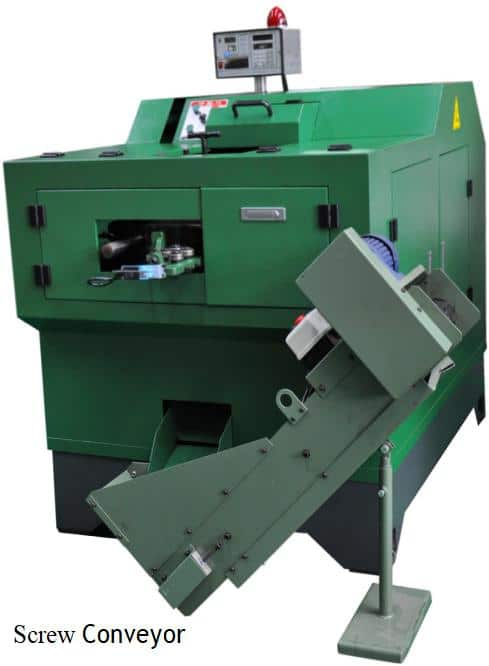

High speed heading machine with screw conveyor

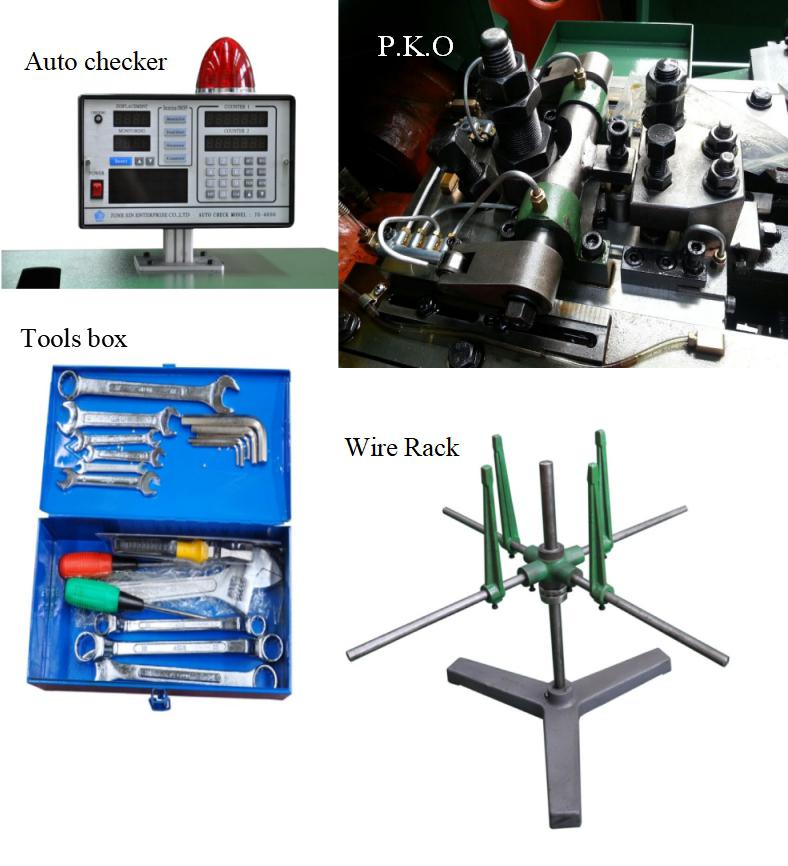

High speed heading machine with accessories and auto checker function optional
