Hex Head Steel Zinc Plated Chemical Anchor Stud Bolts

Description

Description

Hex Head Steel Zinc Plated Chemical Anchor Stud Bolts

Chemical anchor can be used for the anchoring of concrete and external wall structural parts. The anchoring method is adhesive type. Corresponding hoses are provided.

Material: Grade 5.8, 8.8 carbon steel and 304, 316 stainless steel

Surface treatment: cold galvanized (zinc layer thickness ≥ 5um);

hot galvanized (zinc layer thickness ≥ 45um);

304,316 stainless steel does not require surface treatment.

Technical parameters(mm):

Product model

Drilling diameter

Drilling depth

Anchorage thickness(max)

Substrate thickness(min)

Screw length

M8×110

10

80

15

140

110

M10×130

12

90

20

160

130

M12×160

14

110

25

210

160

M16×190

18

125

35

210

190

M20×260

25

170

65

340

260

M24×300

28

210

65

370

300

M30×380

35

270

70

540

380

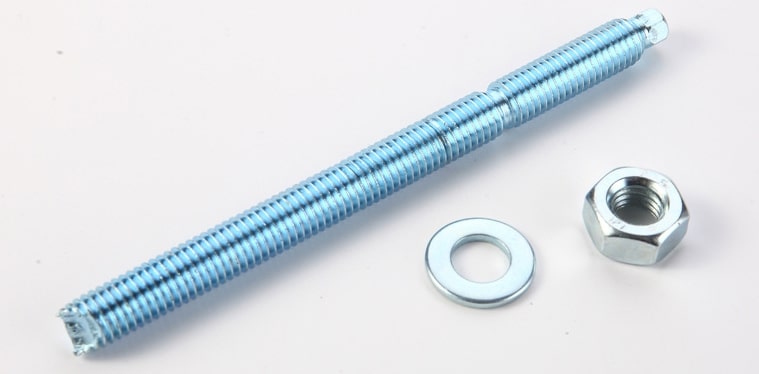

Hex Head Steel Zinc Plated Chemical Anchor Stud Bolts components

Hex Head Steel Zinc Plated Chemical Anchor Stud Bolts components

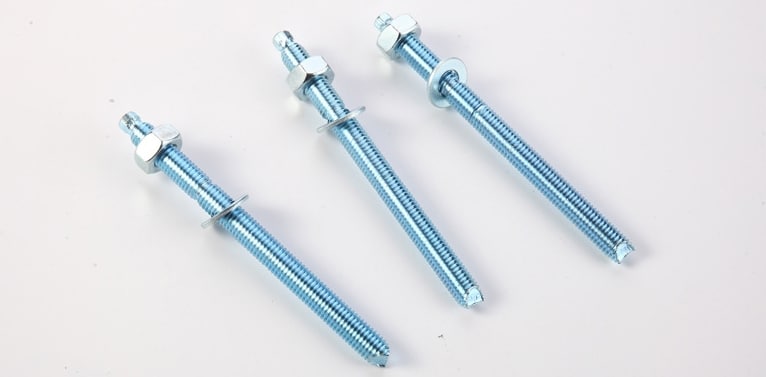

Hex Head Steel Zinc Plated Chemical Anchor Stud Bolts details

Hex Head Steel Zinc Plated Chemical Anchor Stud Bolts details

Chemical reaction time:

Substrate temperature

Hardening time

-5℃—0℃

5h

0℃—10℃

1h

10℃—20℃

30min

>20℃

20min

Operating:

1. Use straight hole drills to drill holes of corresponding diameter and depth;

2. Use the soot blower to sweep ash more than 2 times;

3. Use a brush to clean hole dust more than 2 times;

4. Use the soot blower again to sweep ash until the hole has no dust overflow;

5. Put in the medicament tube;

6. Use a torque drill to screw in a high-strength chemical anchor to complete the anchoring.

P.s. Electric hammer, drills, soot blowers, brush, torque drills and mounting connector will be used during the operation. Jiraw is equipped with a brush and mounting connector as standard. Soot blowers are presented in proportion to the quantity. Others are purchased on demand.

Packing and shipment

anchor fasteners packing and shipment

Hex Head Steel Zinc Plated Chemical Anchor Stud Bolts packing and shipment

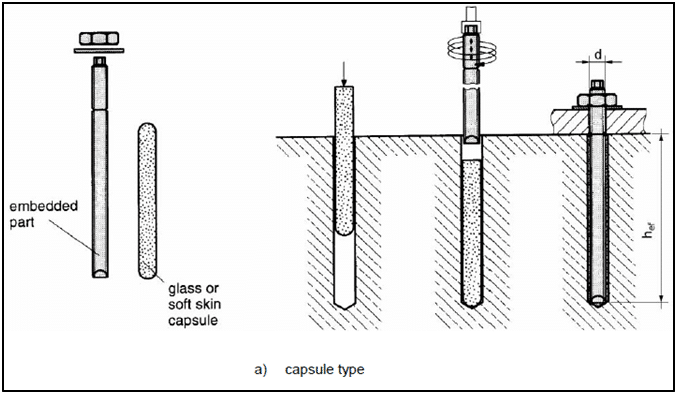

Install method:

Hex Head Steel Zinc Plated Chemical Anchor Stud Bolts install method

Hex Head Steel Zinc Plated Chemical Anchor Stud Bolts install method
