Description
Running video of Double station drop in anchor bush automatic thread tapping machine
Salient Features of Double station drop in anchor bush automatic thread tapping machine:
- Full automatic design with high efficiency.
- Easy to operate and adjustment.
- Advanced PLC control system optional.

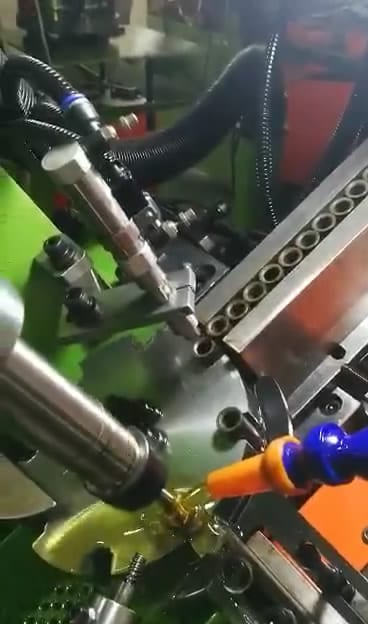

DROP IN ANCHOR thread tapping rotary plate feeding
Specification sheet of double station drop in anchor bush automatic tapping machine
| Model | M6 | M8 | M10 | M12 | M16 | M20 |
|---|---|---|---|---|---|---|
| Size | 1/4" | 5/16" | 3/8" | 1/2" | 5/8" | 3/4" |
| Tapping Stations | 2 | 2 | 2 | 2 | 2 | 2 |
| Tapping Speed | 42PPM | 40PPM | 40PPM | 30PPM | 20PPM | 16PPM |
| Rotary Per Min. | 940 | 740 | 650 | 560 | 420 | 320 |
| Air Pressure | 4-5kg | 5-6kg | 6-8kg | 6-8kg | 6-8kg | 6-8kg |
| Main Motor | 0.55kw*2 | 0.75kw*2 | 1.1kw*2 | 1.1kw*2 | 1.5kw*2 | 1.5kw*2 |
| Oil Pump | 0.25kw | 0.25kw | 0.25kw | 0.25kw | 0.25kw | 0.25kw |
| Appro. Weight | 600kg | 600kg | 650kg | 900kg | 1 20 0kg | 1500kg |
| Appro. Dimension | 1.5*0.8*0.7M | 1.5*0.8*0.7M | 1.5*0.9*0.78M | 1.8*1.0*0.9M | 1.8*1.2*1.0M | 1.9*1.3*1.2M |
