Description

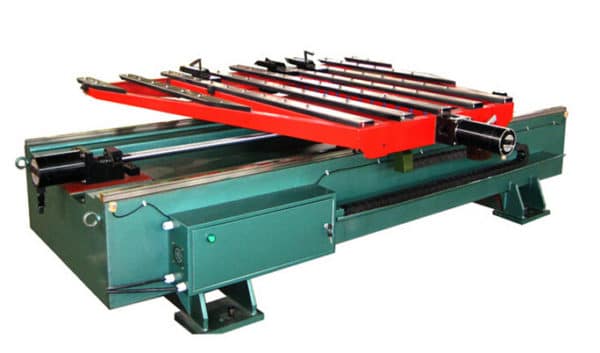

Specifications of CNC steel material feeder
| Types | 25C |
| Suitable for nominal force (KN) | 63-1250 |
| Processing the largest sheet (mm) | 2500×1250 |
| Machining accuracy (mm) | ±0.1 |
| Standard feed rate (m/min) | 30 |
| Maximum feeding plate thickness (mm) | 6 |
| Number of control axes (a) | 2 |
| Lead screw lead (mm) | 20 |
| Rated power (kw) | 3.2 |
| Rail spacing (mm) | 800 |
| Dimensions (mm) | 3200×2160×88 |
Features of CNC steel material feeder
● After the bed is welded, it is treated by vibration aging and stress relief, and the rigidity is good;
●The clamp is manual, pneumatic or hand-held;
● The work surface is an integral sheet metal mixed universal ball structure;
●The motor and driver are imported stepping, with unique anti-jitter and noise reduction technology, and the operation is more stable;
●The guide rail and screw are imported brands to ensure the feeding accuracy;
●Configure manual centralized lubrication pump to reduce the friction of each movement pair;
●The cable adopts the special cable for the towline, which has good toughness, oil resistance and anti-interference;
●The main electrical components are imported;
●The control system adopts a special intelligent brand industrial computer with intuitive interface and reliable performance;
● The software is easy to learn, full-featured, and the CAD graphics are directly converted, which is convenient and quick.
