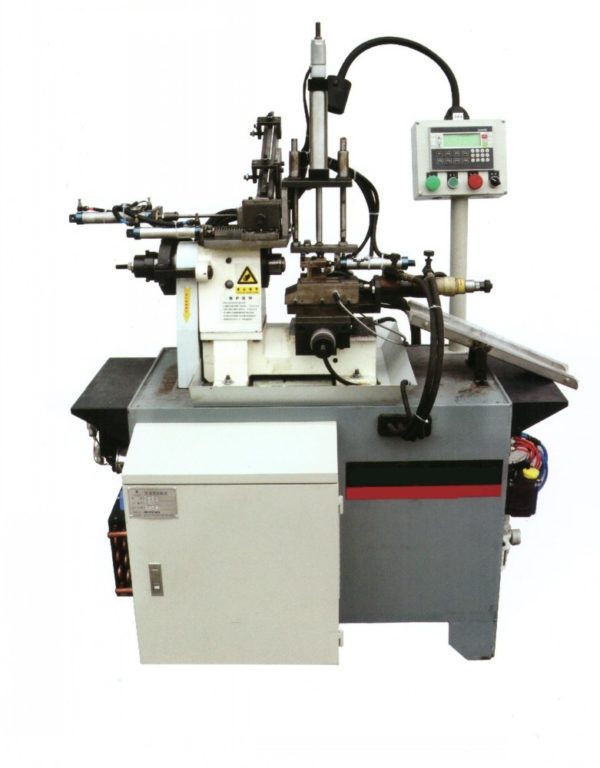

ATL-25 specialty fastener front feeding automatic turning lathe

ATL-25 specialty fastener front feeding automatic turning lathe

Description

Description

ATL-25 specialty fastener front feeding automatic turning lathe specifications:

Processing form: processing large head size specialty fasteners.
specialty fasteners length: 30-70mm
specialty fasteners diameter: 4-25mm (can be increased)
specialty fasteners shape: round, square, hexagonal
Processing speed: 8-15 pcs per min.
Length tolerance: ±0.05mm
Control System: PLC+Hydraulic System
Motor power: 1.5KW
Spindle speed: 2000 rpm (optional stepless speed regulation)
Power supply voltage: 380V 50HZ (three-phase four-wire) or customized
Machine weight: about 550kg
Feeding type: front load and unload

Main use and application scope of ATL-25 specialty fastener front feeding automatic turning lathe

Scope of application: suitable for mass production of various stepped shaft parts  and specialty fasteners.
Automated machining process of outer circle , flat end face, slotting, chamfering, hole punching, etc.
For example: high-strength hex bolts, shafts parts, pins, rivets, hardware.

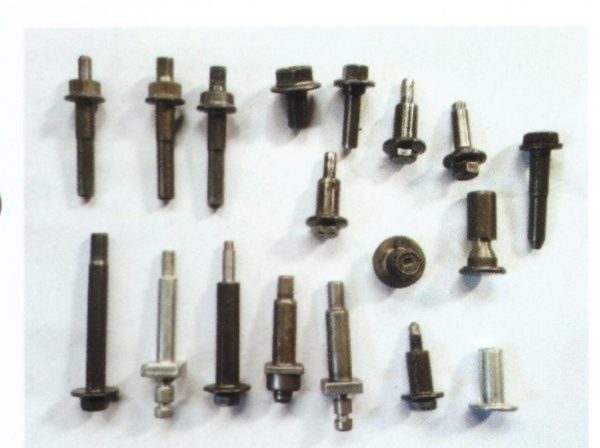

Specialty fasteners sample machined byATL-25 specialty fastener front feeding automatic turning lathe

specialty fastener machined by front feeding automatic turning lathe

specialty fastener machined by front feeding automatic turning lathe

auto turning lathe machining parts1

auto turning lathe machining parts1

auto turning lathe machining parts2

auto turning lathe machining parts2

auto turning lathe machining parts3

auto turning lathe machining parts3
