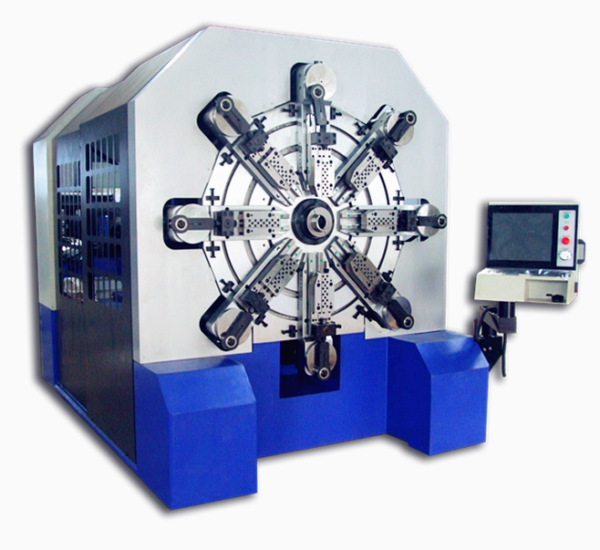

Salient Features of ASF-60T Camless High Speed Springs Production Machine
- Full automatic design with high efficiency.
- Easy to operate and adjustment.
- Advanced PLC control system optional.

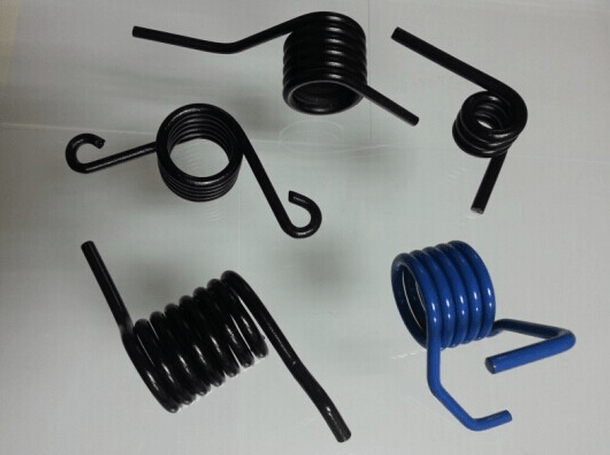

Unique camless and non-rocker design, independently controlled by multiple sets of servo motors, can produce a variety of special-shaped springs, compression springs, double torsion springs, battery springs, flat springs and various wire forming . Precision and accurate, fast, stable and reliable, this machine is also called the eight-jaw spring machine, because he has 8 stations, of course, there is no cam spring machine, because there is no cam, but also CNC spring machine, because it is full computer numerical control of.
Local functions and features:
1. No cam and no rocker arm design ( not only the speed of the machine is more than 50% faster than the traditional cam machine, but also the production speed is faster than 100% , accurate positioning and stable operation ) .
2 , with the advantages of traditional 8- station machinery, and a set of free hands, can play up and down, left and right, free to play (production of difficult springs, easier, faster, more accurate.)
3 , full-rolling guide rail, long-term accuracy.
4 , no collision machine and heat, composite blade to complete all processes, low blade loss.
5 , intelligent module, automatic detection and alarm.
6 , Windows operation system, Chinese and English display, easy to learn and use.
Parameters of ASF-60T Camless High Speed Springs Production Machine
|Maximum wire feed command value||10000.00mm|
|Minimum wire feed command value||0.01mm|
|Maximum wire feed speed||80m/ min|
|Maximum wire length||Infinite length|
|Number of axes||12 axis|
|Servo motor rated output total power||50KW|
|Computer specification||Pentium Industrial Computer|
|Process data storage||More than 2000|
|Pneumatic system||Air pressure||5-6KG/cm|
