ASF-460C Cam High Speed Spring Forming Machine

ASF-460C Cam High Speed Spring Forming Machine

Description

Description

Salient Features of ASF-460C Cam High Speed Spring Forming Machine

  1. Full automatic design with high efficiency.
  2. Easy to operate and adjustment.
  3. Advanced PLC control system optional.

1. Twelve groups of servo motors independently control eight stations, turn core, feed line, turn, turn. Quick adjustment (more than 50% faster than cam machine, more than 10% faster than similar products)

2. Imported servo motor and precision ball screw drive mode ensure high precision, long life and high stability.

3. The tool holder adopts a parallel heavy-duty double-rail slider to ensure high rigidity.

4. Simple operation, friendly interface, the computer automatically detects the health status and alarm of the whole machine.

5. High-precision wire box gear manufacturing process, maintaining wire feeding accuracy for a long time.

6. Wide application core circumference, suitable for producing all kinds of special-shaped springs, wire forming, tension springs, compression springs, torsion springs, flat springs, spiral coil springs, etc.

Parameters of ASF-460C Cam High Speed Spring Forming Machine

Rollable material wire diameter 2.0-ф6.0mm (iron line ф3.0-ф8.0mm)
Rollable spring maximum outer diameter Maxф80mm
Wire feed command value ±0.01~±9999.99
Wire feed speed 0~110m/min
Cam command value ±0.10°~±359.90°
Cam speed 1 to 60 RPM
Wire servo motor 7.0KW
Cam servo motor 7.0KW
Rotary core servo motor 1.5KW
Transfer servo motor 7.0KW
power supply 380V±10%V50HZ
size 1320X730X1720mm
weight 5800kg

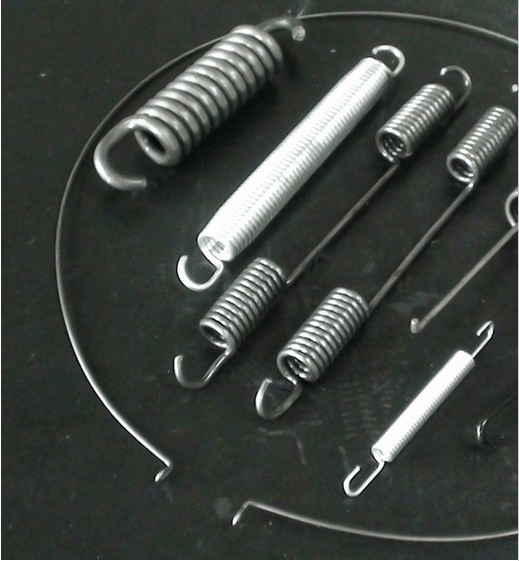

Product made by ASF-460C Cam High Speed Spring Forming Machine

Product made by ASF-460C Cam High Speed Spring Forming Machine
