Salient Features of ASF-45T Camless High Speed Spring Fasteners Production Machine
- Full automatic design with high efficiency.
- Easy to operate and adjustment.
- Advanced PLC control system optional.

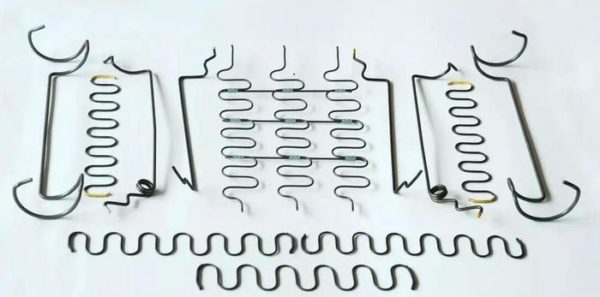

Unique camless and non-rocker design, independently controlled by multiple sets of servo motors, can produce a variety of special-shaped springs, compression springs, double torsion springs, battery springs, flat springs (spring springs) and various wire forming. Various wire bending and so on. Precise and accurate, fast, stable and reliable.
Local functions and features:
1. No cam, no rocker design (the speed of the adjustment is more than 50% faster than the traditional cam machine, the production speed is fast, the positioning is accurate, and the operation is stable).
2, full-rolling guide rail, long-term accuracy.
3, no collision machine and heat, composite tools to complete all processes, low tool loss.
4, intelligent module, automatic detection and alarm.
5, Windows window operation, Chinese and English display, easy to learn and use.
6, the domestic original use of camera photo detection, and can automatically correct the function, better improve the precision of the machine!
Parameters of ASF-45T Camless High Speed Spring Fasteners Production Machine
|Maximum wire feed command value||10000.00mm|
|Minimum wire feed command value||0.01mm|
|Maximum wire feed speed||100m/min|
|Maximum wire length||Infinite length|
|Number of axes||12 axis|
|Servo motor output total power||24000W|
|Computer specification||Pentium Industrial Computer|
|Process data storage||More than 2000|
|Pneumatic system||Air pressure||5-6KG/cm|
