Description
Salient Features of ASF-320C Cam High Speed Spring Forming Machine
- Full automatic design with high efficiency.
- Easy to operate and adjustment.
- Advanced PLC control system optional.
1. Twelve groups of servo motors independently control eight stations, turn core, feed line, turn, turn. Quick adjustment (more than 50% faster than cam machine, more than 10% faster than similar products)
2. Imported servo motor and precision ball screw drive mode ensure high precision, long life and high stability.
3. The tool holder adopts a parallel heavy-duty double-rail slider to ensure high rigidity.
4. Simple operation, friendly interface, the computer automatically detects the health status and alarm of the whole machine.
5. High-precision wire box gear manufacturing process, maintaining wire feeding accuracy for a long time.
6. Wide application core circumference, suitable for producing all kinds of special-shaped springs, wire forming, tension springs, compression springs, torsion springs, flat springs, spiral coil springs, etc.
Parameters of ASF-320C Cam High Speed Spring Forming Machine
| Rollable material wire diameter | 0.20.2～ф2.5mm (iron wire ф0.5～ф3.5mm) |
| Rollable spring maximum outer diameter | Maxф60mm |
| Wire feed command value | ±0.01~±9999.99 |
| Maximum wire feed speed | 0~110m/min |
| Cam command value | ±0.1°~±359.9° |
| Cam speed | 0~100RPM |
| Wire servo motor | 2.7KW |
| Rotary core servo motor | 2.7KW |
| Cam servo motor | 0.75KW |

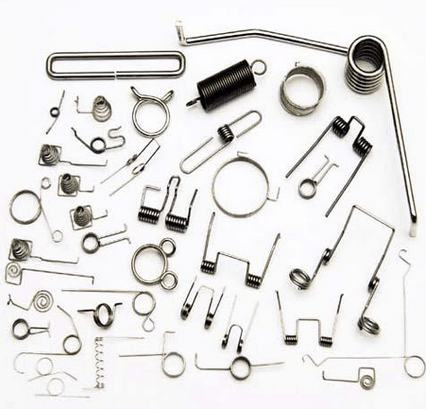

Springs made by ASF-320C Cam High Speed Spring Forming Machine
