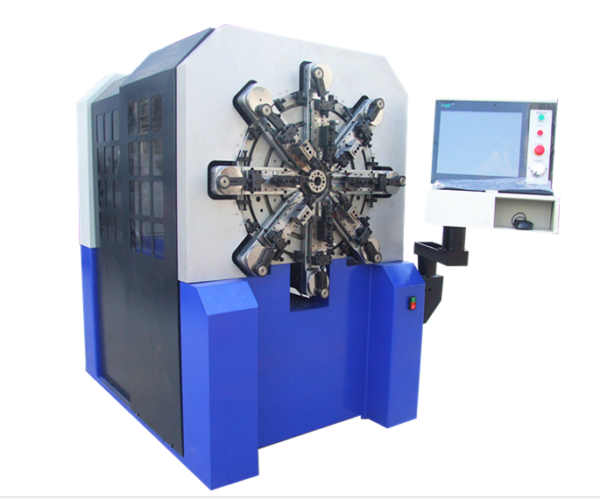

ASF-28T 12 Axles Camless Spring Parts Production Machine

ASF-28T 12 Axles Camless Spring Parts Production Machine

Description

Description

Salient Features of ASF-28T 12 Axles Camless Spring Parts Production Machine

  1. Full automatic design with high efficiency.
  2. Easy to operate and adjustment.
  3. Advanced PLC control system optional.

1. Twelve groups of servo motors independently control eight stations, turn core, feed line, turn, turn. Quick adjustment (more than 50% faster than cam machine, more than 10% faster than similar products)
2. The direct connection mode of servo motor and precision planetary reducer ensures high precision, long life and high stability, and overcomes the shortcomings of low stability of other transmission modes.
3. The tool holder adopts parallel double-rail sliders and has a high-speed lateral movement tool holder for more flexible adjustment.
4. Unique eccentric shaft double-end support, the production of large diameter springs is more stable and more rigid.
5. High-precision wire box gear manufacturing process, full gear transmission line structure, faster and more stable.
6. Arm position 360 degree rotation, powerful line forming ability.
7. Wide application core circumference, suitable for producing all kinds of special-shaped springs, paper clips, tension springs, compression springs, torsion springs, flat springs, spiral coil springs, etc

Parameters of ASF-28T 12 Axles Camless Spring Parts Production Machine

model ASF-28T
Wire diameter 0.4-2.8
Maximum wire feed command value 10000.00mm
Minimum wire feed command value 0.01mm
Maximum wire feed speed 80m/ min
Maximum wire length Infinite length
Number of axes 12 axis
Servo motor rated output total power 50KW
Input voltage 380V
Computer specification Pentium Industrial Computer
Process data storage More than 2000
Pneumatic system Air pressure 5-6KG/cm
Probe 3
Machine size length 1550mm
width 1250mm
height 1760mm
Machine weight 1500KG
Spring parts made by ASF-28T 12 Axles Camless Spring Parts Production Machine

Spring parts made by ASF-28T 12 Axles Camless Spring Parts Production Machine
