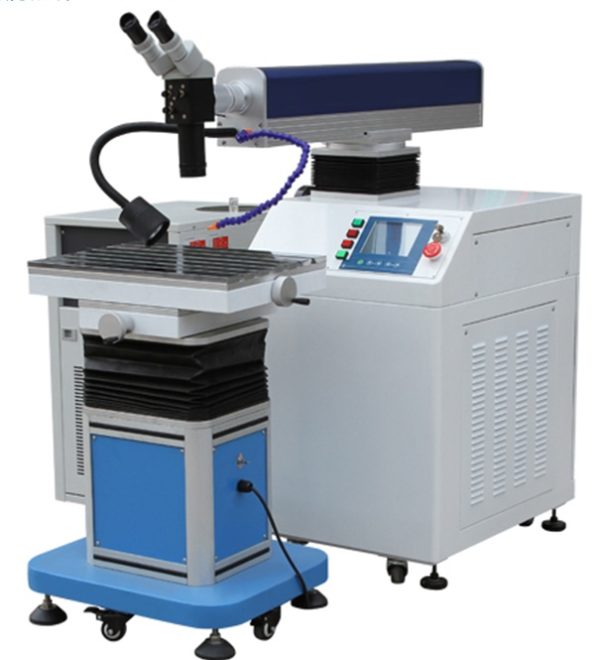

Features of AMY-M Mold die tooling laser welding repaire machine

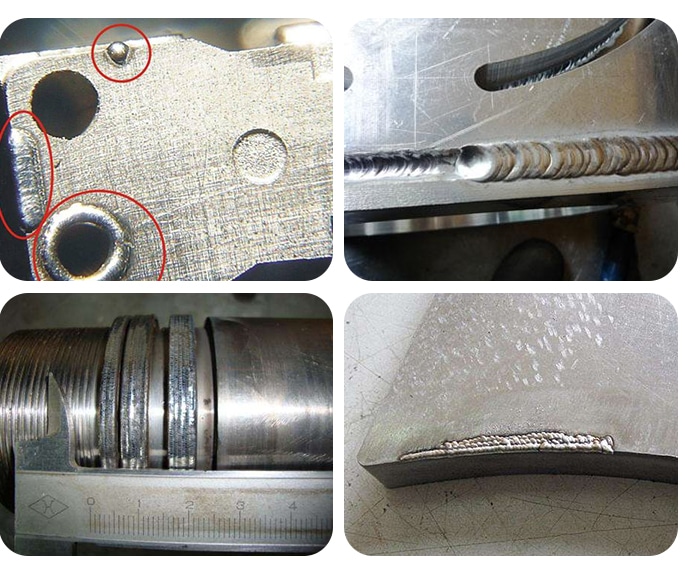

The Mold die tooling laser welding repaire machine can effectively handle welding and repairing of all minor parts with the fusion technology of laser high thermal energy and centralized fixed point, which can make up the deficiency of the traditional argon arc welding technology in repairing the fine surface of welding, avoid the two thresholds of thermal strain and post-treatment, and greatly save the production cycle of the die. The main advantages of the mold industry tailor-made, using a unique mechanism design, suitable for a variety of large, medium and small mold repair.Used for the repair of precision molds, such as digital products, mobile phones, toys, household appliances, cars and other mold manufacturing and molding industries.
1. Adopt imported ceramic concentrated cavity, resistant to corrosion and high temperature, with cavity life of 8-10 years and xenon lamp life of more than 8 million times.
2. Adopt advanced automatic shading technology to eliminate eye irritation at work.
3. The laser head can rotate 360 degrees, and the whole part can rotate 360 degrees. It can move forward, backward, upward, and left and right.
4. The working table can be moved up and down by electric motor and move in three dimensions.
5. The photoelectric size can be adjusted electrically.
Specifications of AMY-M Mold die tooling laser welding repaire machine
|Table triaxial stroke||130mm*95mm*150mm|
|Table three-axis dimensions||450mm*350mm|
|Machine power supply||380V/±10%/50hz/60A|
|Laser type||Nd：YAG pulse|
|Spot adjustment range||0.1-3.0mm|
|Light spot size||0.2-3.0mm|
|Optical maser wavelength||1064nm|
|Depth of weld||≤2mm|
|Laser output focal length||80mm/100mm/120mm/200mm|
|Laser cooling||Water cooled|
|Observe the positioning||Microscope|
|Control system||PC or PLC|
|Shielding gas||1 Roda|
