3D Wire Parts Forming Machine

3D Wire Parts Forming Machine

Description

Description

Salient Features of 3D Wire Parts Forming Machine

  1. Full automatic design with high efficiency.
  2. Easy to operate and adjustment.
  3. Advanced PLC control system optional.

Applicable to 3D car seat frame production, sun visor skeleton, car door lock lever, handicraft metal wire, sanitary ware tableware bracket, warehouse cage, shopping trolley and other wire forming equipment

Parameters of 3D Wire Parts Forming Machine

Model ASF3D-708 ASF3D-712
Wire diameter range Iron wire 3.0 – 8.0 mm 3.0 -12.0 mm
Steel wire 3.0 – 6.0 mm 3.0 -6.0 mm
Feed line length UNLIMITED UNLIMITED
Bending angle ± 0.02° ± 0.02°
Maximum wire feed speed 70 m / min 70 m / min
Maximum bending speed 3 turns / sec 3 turns / sec
Positioning accuracy ± 0.02° ± 0.02°
7- axis performance Horizontal movement 2.7KW; vertical movement 2KW;feed line 3.8KW; transfer line 2.7KW
Cutter 2.7KW;     Inner bending knife 2.7KW; outerbending knife 2.7KW
Installation of electricity 19.3KVA 23 KVA
Machine equipment 320CM long 320CM long
Width 90 CM Width 90 CM
High 150 CM High 150 CM
Machine weight 3000KGS 3000KGS
Standard equipment :
(1) Feeding wheel 4pcs
(2) Cutter + cutter holder 1 SET
(3) Rotating head 2PCS
(4) Toolbox
Optional equipment :
                              (1) Wire feeder 500KGS or 1000KGS or 1500 KGS
            (2) Tool TOOLINGS ( customer requirements are optional )

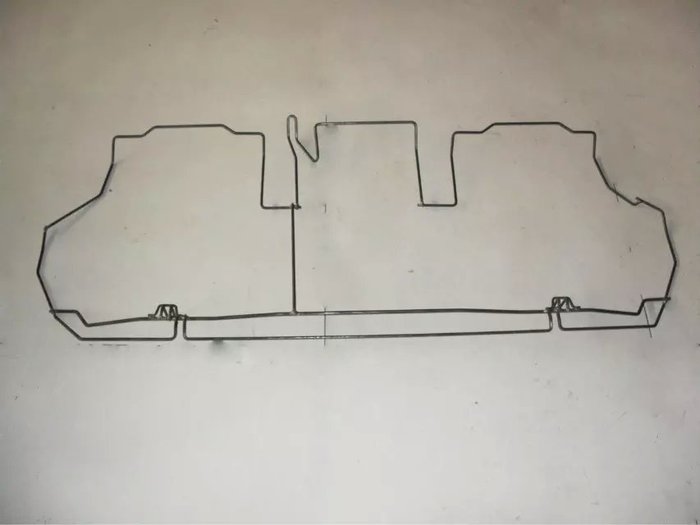

Parts made by 3D Wire Parts Forming Machine1

Parts made by 3D Wire Parts Forming Machine1

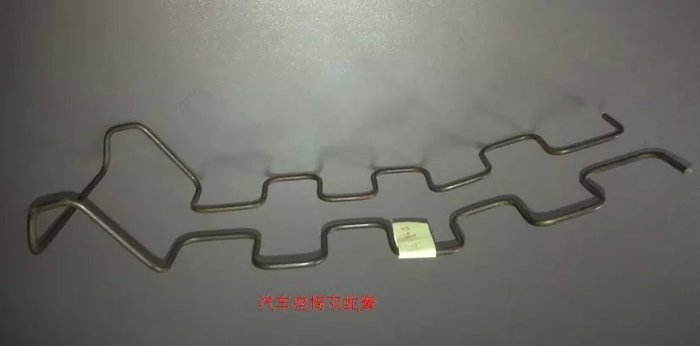

Parts made by 3D Wire Parts Forming Machine2

Parts made by 3D Wire Parts Forming Machine2

Parts made by 3D Wire Parts Forming Machine3

Parts made by 3D Wire Parts Forming Machine3
