12MM wedge anchor bolt automatic feeding thread rolling machine

Salient Features:

  1. Full automatic design with high efficiency.
  2. Easy to operate and adjustment.
  3. Advanced PLC control system optional.
Description

Description

Running video of 12MM wedge anchor bolt automatic feeding thread rolling machine:


Main functions of 12MM wedge anchor bolt automatic feeding thread rolling machine:

Main functions of wedge anchor bolt flat die thread rolling machine is to make wedge anchor bolt products happen plastic deformation by press rolling of one dynamic thread rolling plate die and one statics thread rolling plate die , and the form the different thread types by thread rolling plate die different design, it can accurately grinding various standard thread tooth of national standard,ISO,DIN, JIS, ANSI, BS,GB,etc., the machine has the advantages of fully automatic, high production speed and good-stability performance, the output per minute capacity can be up to more than 300pcs, it is most advanced thread rolling machine with higher speed in the current market, which is also suitable for mass thread rolling production for other types screws and bolts.Auto checker system and inverter is optional by customers.

Specificatons of M12 Wedge Anchor Bolt Thread Rolling/Drop In Anchor Bush Knurling Machine

ParametersUnitModel:Z25-12
Max.DiameterMM12
Die Case HeightMM120
Max.OutputPPM65
Main Motor)KW7.5
Appro.WeightTON1.5
Appro.DimensionM3.1*1.45*1.8



Advance features of 12MM wedge anchor bolt automatic feeding thread rolling machine:

(1) Newest style,perfect design.High speed and stability fitting your goal of efficiency.Made from high quality material, undergoing high abrasion-resistance and low deformation heat treatment process, the machine is endurable with long time preciseness.
(2) Our machines adopt the automatic feeding system with vibrator mode.
(3) The materials transportation bridges are made under 40Cr high frequency quenching condition,so the mateirals could go smoothly and the bridges are abrasion resistant.
(4) The slider of our machines are made of tin bronze alloys imported from Japan,and the sideboard are made of high abrasion-resistant spring steel from Taiwan,so it can be high abrasion-resistant,without any drag force,not generating any heat.
(5) The bearing of our machines are imported from Japan’s NSK,and springs are imported from Japan’s Daido,the lubrication equipments are imported from Taiwan.
(6) The interface of all parts are scraped as per the traditional handwork technology,the space between each position are less than 0.02mm.
(7) Our machines are designed for precise machining of all types of screw thread conforming to the Metric System, Japanese System, American System, etc.
(8)This machine uses high-strength high-quality castings, and the full aging treatment to eliminate residual stress, to ensure long-term accuracy of the host, the life of the punch than similar products and equipment 2-3 times.
(9)The machine is easy to debug maintenance and cleaning.
(10) Key components imported directly from Japan and Taiwan, to ensure high precision equipment, engage in high hardness requirements of wear.
(11) Compact design, high-speed stability. The use of mandatory to the oil concentration system to ensure that the components in the oil film state of operation to ensure that the machine’s long-term durability.

Wedge anchor bolt thread rolling plate die

Wedge anchor bolt thread rolling plate die

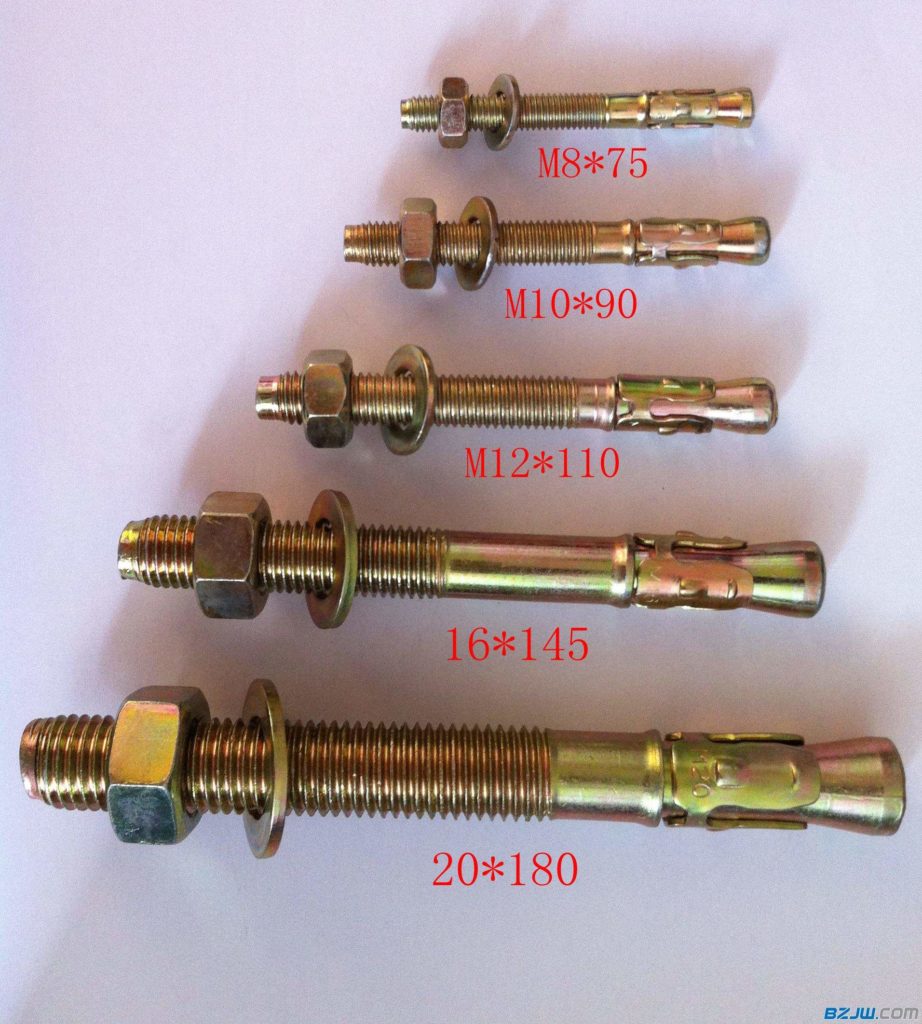

Threaded wedge anchor by thread rolling machine

Threaded wedge anchor by thread rolling machine
