100-500Tons APS series single crank slide adjustable precision press

Description

Description

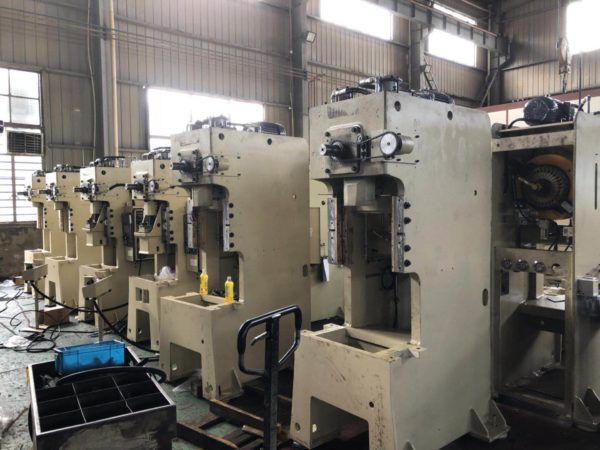

100-500Tons APS series single crank slide adjustable precision press

Features
· Widely used in stamping and forming of electronics, communication, computers, household appliances, furniture, performance tools (automobiles, motorcycles, bicycles), hardware parts, etc.
· Straight wall integrated frame for precision continuous die stamping.
·Without the opening throat disadvantage of C-type punching frame which can save mold maintenance costs.
· High-rigidity frame, the guide rail is on the center line of the punch and the support stroke is long, which ensures long-term dynamic stability and prolongs the life of the mold.
·The bottom area of ​​the punch is 15~25% larger than the C-type punch, allowing the station numbers of mold projects to increase and the value added processing.
·High-torque wet brake clutch for long life and low maintenance cost; no pollution, low noise, and environmental protection. High security,
·High-affinity, versatile electronic electronic control system.
· Can be used with a variety of automation equipment, easy to operate.
·Electric punch adjustment device: This adjustment device uses a thin brake motor and operates with a button. Its advantages are accurate positioning, stable mechanism, and rapid adjustment.
·Easy punch adjustment device: Simple and reliable manual mold height adjustment equipment with 0.1mm indicator.
·Electric grease pump: automatic timing centralized lubrication pump and fault detection system to ensure smooth operation.

· Highly rigid body, small deformation of the fuselage, and greatly improved tool life.
·Low noise, low vibration, and low cutting noise.
·The number of strokes is adjustable.
·Hydraulic overload protection device, overload automatic emergency stop, protect punch and mold safety.
· Strong left and right eccentric load.
·The fixed-lock six-sided long guide has high precision.
·Human machine interface, easy to operate.

Specifications of 100-250Tons APS series single crank slide adjustable precision press

ModelUnitAPS-100APS-100APS-150APS-150APS-200APS-200APS-250APS-250
CapacityTon100100150150200200250250
Rated tonnage point (above B.D.C)mm3646.54747
Stroke lengthmm40180402004025040250
Stroke per minutes.p.m80-18020-4580-15020-4060-13020-4050-11020-40
Die height(S.D.A.U)mm290450310500350550380550
Maximum counterbalancer capacitykg80080080080010001200800800
Slide adjustmentmm100100100120100150100150
Slide areamm700×600700×600700×700700×700800×800900×800800×800800×800
Bolster areamm700×700700×700800×700800×700900×9001000×900900×900900×900
Bolster thicknessmm140140150150170170180180
Slisde openingFBxH400×400400×400450×300300×300400×400300×400400×300350×300
Height of the top surface of bed from floor levelmm84084083083085075010601060
Work energykg-m3007507001000800150010002000
Main motorHpXpV.S30×4V.S30×4V.S40×4V.S40×4V.S40×4V.S40×4V.S40×4V.S40×4
Slide adjusting motorHpXp1×41×42×42×42×42×42×42×4
Frame structureone piece frameone piece frameone piece frameone piece frameone piece frameone piece frameone piece frameone piece frame

260-500Tons APS series single crank slide adjustable precision press

ModelUnitAPS-260APS-260APS-300APS-300APS-360APS-360APS-500APS-500
CapacityTon260260300300360360500500
Rated tonnage point (above B.D.C)mm479789137
Stroke lengthmm40200300250250300350300
Stroke per minutes.p.m50-11020-4020-3520-3520-3515-304339815-30
Die height(S.D.A.U)mm380550650550550600700650
Max.counter balancer capacitykg12001200150015001000150015001500
Slide adjustmentmm100150150150150150150150
Slide areamm1000×9001000×9001000×9001000×9001000×9001000×9001200×12001100×1000
Bolster areamm1000×10001000×10001000×10001000×10001000×10001100×10001300×11001200×1100
Bolster thicknessmm180180200200200200200220220
Slisde openingFBxH500×300400×500400×500400×500400×500400×500500×650450×600
Height of the top surface of bed from floor levelmm600700750850900950800800
Work energykg-m10002000300025003000350070003800
Main motorHpXpV.S40×4V.S40×4V.S40×4V.S40×4V.S50×4V.S50×4V.S60×4V.S60×4
Slide adjusting motorHpXp2×42×42×42×42×42×43×43×4
Frame structuretie rod typetie rod typetie rod typetie rod typetie rod typetie rod typetie rod typetie rod type
Top quality copper anti wear sleeve of APA series universal type progressive stamping precision press

Top quality copper anti wear sleeve of 100-500Tons APS series single crank slide adjustable precision press

inverter of 15Tons-260Tons APA series universal type progressive stamping precision press

Delta inverter of 100-500Tons APS series single crank slide adjustable precision press

OMPI clutch used on APA series universal type progressive stamping precision press

OMPI clutch used on 100-500Tons APS series single crank slide adjustable precision press

Dorna mitusbihsi chint electric devices on APA series universal type progressive stamping precision press

Dorna mitusbihsi chint famous brands electric components used one the stamping press

Cnc strip feed for Workshop of APA series universal type progressive stamping precision press

Cnc automatic strip feeder with touch screen of chinese and english language.
