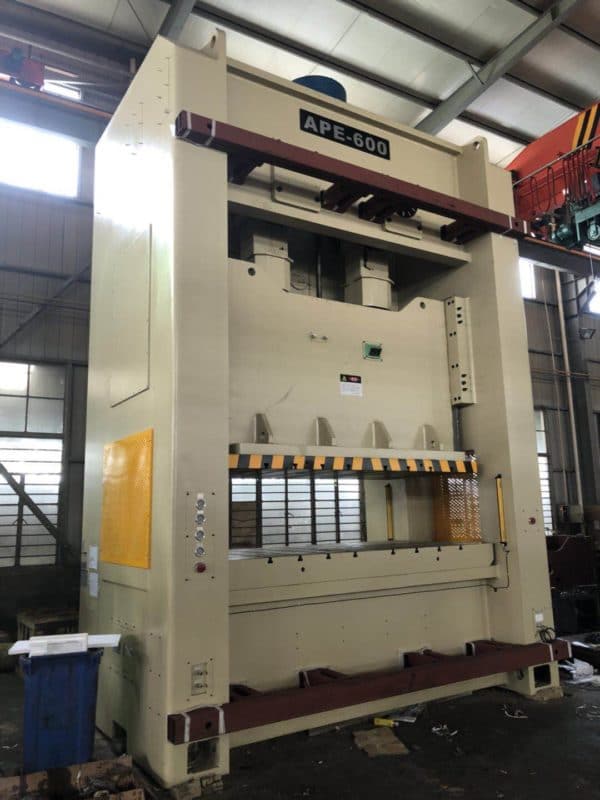

100-500Tons APM series couple cranks precision pressing machine

Description

Features
· Widely used in stamping and forming of electronics, communication, computers, household appliances, furniture, performance tools (automobiles, motorcycles, bicycles), hardware parts, etc.
· Straight wall integrated frame for precision continuous die stamping.
·Without the opening throat disadvantage of C-type punching frame which can save mold maintenance costs.
· High-rigidity frame, the guide rail is on the center line of the punch and the support stroke is long, which ensures long-term dynamic stability and prolongs the life of the mold.
·The bottom area of the punch is 15~25% larger than the C-type punch, allowing the station numbers of mold projects to increase and the value added processing.
·High-torque wet brake clutch for long life and low maintenance cost; no pollution, low noise, and environmental protection. High security,
·High-affinity, versatile electronic electronic control system.
· Can be used with a variety of automation equipment, easy to operate.
·Electric punch adjustment device: This adjustment device uses a thin brake motor and operates with a button. Its advantages are accurate positioning, stable mechanism, and rapid adjustment.
·Easy punch adjustment device: Simple and reliable manual mold height adjustment equipment with 0.1mm indicator.
·Electric grease pump: automatic timing centralized lubrication pump and fault detection system to ensure smooth operation.

· Highly rigid body, small deformation of the fuselage, and greatly improved tool life.
·Low noise, low vibration, and low cutting noise.
·The number of strokes is adjustable.
·Hydraulic overload protection device, overload automatic emergency stop, protect punch and mold safety.
· Strong left and right eccentric load.
·The fixed-lock six-sided long guide has high precision.
·Human machine interface, easy to operate.

Specifications of 100-500Tons APM series couple cranks precision pressing machine

Model	Unit	APM-160B	APM-160B	APM-200B	APM-200B	APM-250B	APM-250B	APM-300B	APM-300B	APM-400B	APM-400B	APM-500	APM-500
Type		S	H	S	H	S	H	S	H	S	H	S	H
Capacity	Ton	160	150	200	200	250	250	300	300	400	400	500	500
Rated Tonnage point	mm	6	3	6	3	7	3	7	3	7	7	12	8
Stroke per minute	s.p.m	30-55	40-85	20-50	35-70	20-40	30-60	20-35	30-50	20-30	20-40	15-25	15-35
Stroke	mm	180	130	250	150	280	170	300	170	300	300	350	250
Die height	mm	450	400	500	450	550	450	550	450	550	550	700	600
Slide adjustment	mm	100	100	120	120	120	120	120	120	120	120	150	150
Slide Area	mm	1600×650	1600×650	1850×750	1850×750	2400×900	2400×900	2400×900	2400×900	3100×1000	2700×1000	3400×1200	2700×1200
Bolster area	mm	1800×760	1800×760	2200×940	2200×940	2500×1000	2500×1000	2500×1000	2500×1000	3200×1000	2700×1100	3400×1200×220	2700×1200×220
Slide Area	mm	700×450	700×450	900×600	900×600	900×600	900×600	900×600	900×600	900×600	900×600	1000×800	1000×800
Main motor	kw.p	V.S.15 × 4	V.S.15 × 4	V.S.18.5 × 4	V.S.18.5 × 4	V.S.22 × 4	V.S.22 × 4	V.S.30 × 4	V.S.30 × 4	V.S.30 × 4	V.S.30 × 4	V.S.55 × 4	V.S.55 × 4
Slide adjust device	kw.p	1× 4	1× 4	2× 4	2× 4	2× 4	2× 4	2× 4	2× 4	2× 4	2× 4	5× 4	5× 4
Air pressure	Kg/m²	6	6	6	6	6	6	6	6	6	6	6	6
Presses precision		GB/JIS	GB/JIS	GB/JIS	GB/JIS	GB/JIS	GB/JIS	GB/JIS	GB/JIS	GB/JIS	GB/JIS	GB/JIS	GB/JIS
Presses dimension	mm	2309×2590x3682	2309×2590x3682	2523×3000x3915	2523×3000x3915	2799×3600x4593	2799×3600x4593	2899×3600x4729	2899×3600x4729	3129×3800x5257	3129×3800x5257	3429×3800x5557	3429×3800x5557
